547 Big Block Ford Pump Gas Short Block
Pump Gas

547 Big Block Ford Pump Gas Short Block $9,750

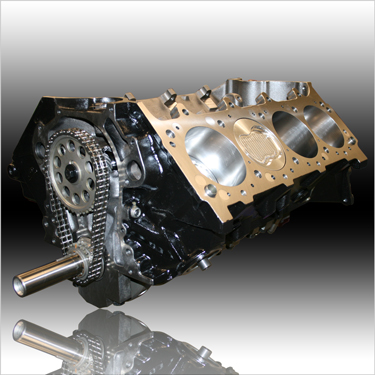

547 Big Block Ford Pump Gas Short Block Basic Version Shown w/Cam Package
547SBF $9,750

Internally Balanced

Our New 547 Ford Big Block Is Now Available In Short Block Form! Different Compression Ratios Are Available - Look At The Following Chart And Let Us Know What Heads You Are Using And We'll Do The Rest!

  • Bore & Stroke
  • Compression Ratio
  • 4.500 x 4.300
  • See Chart Below

Chamber Vol.72cc75cc85cc95cc
Flat Top (-5cc)13.3612.9611.8110.86
Dished (-16cc)12.0211.7010.779.99
Dished (-38cc)10.069.859.208.64
Ratio Computed With .010 Deck & .040" Gasket

  • Ford Motorsports SVO 10.320" Block w/Splayed 4 Bolt Main Caps (1)
  • Lunati 4340 4.300" Forged Steel Crank
  • Molnar 4340 6.750" H-Beam Rods w/ARP 2000 Asymmetrical Bolts
  • Clevite 77 "H" Series Main & Rod Bearings
  • Custom JE 10.75-1 2618 Forged Aluminum Pistons
  • Plasma Moly 1.5/1.5/3.0mm Ring Set
  • Internally Balanced (2)
  • Professionally Blueprinted and Assembled
  • Footnotes:
  • (1) Block Requires 9/16" Head Bolts or Head Studs.
  • (2) Neutral Balance Flexplate/Flywheel and Harmonic Balancer Required.
Camshaft Installation Package$795
Includes: UltraStreet Hydraulic Roller Cam, Rollmaster Billet Timing Set w/IWIS Chain & Torrington Bearing. Camshaft Installed, Degreed-In and Checked For Proper Stroker Clearance.
Lifters
Hi-Performance Solid or Hydraulic Roller Lifters. Call For Details. From$575
Timing
Supply and Install (2) Piece Fuel Pump Eccentric $35
Deluxe Short Block Version
Includes Camshaft Package
$2195
Includes: UltraStreet Hydraulic Roller Cam, Rollmaster Billet Timing Set w/IWIS Chain & Torrington Bearing, OEM Style Front Cover, Hi-Performace Balancer and Billet Pointer, Canton Road Race Oil Pan*, Melling HP Oil Pump w/Pickup. Completely Assembled With TDC Verified and Set.

*Must Specify Front or Rear Sump.
Harmonic Balancer
SFI Approved Harmonic Balancer (Required At All Race Tracks) $150
Lifters
Hi-Performance Solid or Hydraulic Roller Lifters. Call For Details. From$575

Pistons - Pins - Rings - Bearings
Total Seal TNT "Hellfire" Rings $175
Calico Coated Bearing Package $150
Additional Parts - Labor - Accessories
Cometic Multi Layered Steel Head Gaskets. Round Bore - 1/2" Bolt Holes (.040/.045/.051") Each$95
Cometic Multi Layered Steel Head Gaskets. Round Bore - 1/2" Bolt Holes (.060/.066") Each$115
ATI SFI Flexplate - Internally Balanced 157 Tooth 10.5" Bolt Pattern $275
ATI SFI Flexplate - Internally Balanced 164 Tooth 11.5" Bolt Pattern $275
Steel Billet Flywheel - Internally Balanced 157 Tooth 10.5" Bolt Pattern $350
Steel Billet Flywheel - Internally Balanced 164 Tooth 11.5" Bolt Pattern $350
PowerMaster 9603 Hi-Torque Mini Starter. Fits 4.084" block plate with 3/4" depth ring gear. $229
Lucas Break In Oil. Call For Viscosity Recommendation. Priced Per Quart. Quart$8
