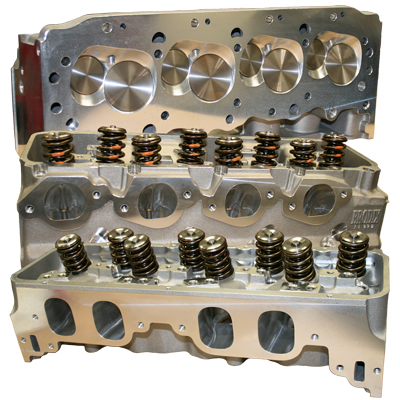

Brodix PB1204 Man Eater Big Block Chevy Cylinder Heads

Brodix PB1204 Man Eater Big Block Chevy Cylinder Heads

PB1204 $8,295
Priced Per Pair

We Start Every Custom Build Of Our Cylinder Heads With Brand New Brodix Castings And Specifically Selected Components - These Heads Are Never "Factory Assembled"!

The BRODIX PB1204 features a 12° valve angle and is Fully CNC ported. Titanium intake and exhaust valves are standard.

  • Porting:
  • Chambers:
  • Intake Port:
  • Exhaust Port:
  • Intake Valve:
  • Exhaust Valve:
  • Fully CNC Ported
  • 71cc w/Titanium Valves
  • CNC Ported
  • CNC Ported
  • 2.520" Titanium
  • 1.860" Titanium
  • Valve Spacing:
  • Springs:
  • Retainers:
  • Studs/Guide Plates:
  • Shaft Rockers:
  • Spark Plug:
  • Standard
  • PAC Racing 1248 Triple Roller
  • 10° Titanium
  • Uses Shaft Rocker System
  • Available
  • 3/4" Reach 5/8" Hex
Rocker Arms
T&D Shaft Rocker System Available In 1.70, 1.75 or 1.80 Ratio (Split Ratio Sets No Extra Charge).
Note: Pushrod Clearance Must Be Checked Before Final Assembly.
$2476
Needle Bearing Tip Option for T&D Shaft Rockers$295
Intake Manifolds
Many Different Styles Available With Pricing Comparable To "Mail Order"From$250
Gaskets - Fasteners
Cometic MLS (Multi Layered Steel) Head Gaskets (.040/.045/.051 Thickness)Each$95
Cometic MLS (Multi Layered Steel) Head Gaskets (.060/.066 Thickness)Each$115
Intake Gaskets - Many Types & Thicknesses AvailableFrom$15
Rubberized Cork Valve Cover GasketsFrom$15
Blue Silicone Rubber/Steel Core Valve Cover GasketsFrom$49
Ultra Seal Exhaust GasketsFrom$22
ARP Head Stud Kit w/Parallel Ground WashersFrom$239
Dart Inner Valley Stud Kit (Improved Head Gasket Sealing)$95
