Brodix 351/365 Oval Port Big Block Chevy Cylinder Heads

Brodix 351/365 Oval Port Big Block Chevy Cylinder Heads $4,650

351/365 $4,650
Priced Per Pair

We Start Every Custom Build Of Our Cylinder Heads With Brand New Brodix Castings And Specifically Selected Components - These Heads Are Never "Factory Assembled"!

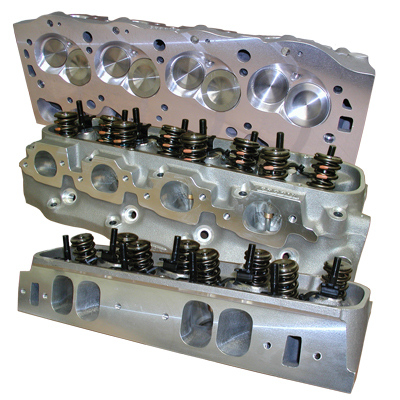

The BRODIX BB-3 XTRA features valve angles rolled two degrees and fully CNC ported oval ports. Port shape, port velocity, and the latest technology have propelled these cylinder heads to the top of their class.

  • Porting:
  • Chambers:
  • Intake Port:
  • Exhaust Port:
  • Intake Valve:
  • Exhaust Valve:
  • Fully CNC Ported
  • 119cc (114cc Available)
  • Oval
  • Raised .600"
  • 2.350" Stainless
  • 1.880" Stainless
  • Valve Spacing:
  • Springs:
  • Retainers:
  • Rocker Studs:
  • Guide Plates:
  • Spark Plug:
  • Standard
  • Manley 1.640" Dual Roller
  • 10° Titanium
  • ARP 7/16"
  • Dart (2) Piece 3/8"
  • 3/4" Reach 5/8" Hex
Porting - Chambers
CC and Mill Chambers to 114cc $175
Springs - Retainers
PAC Racing 1247 Triple Roller Springs - Includes Additional Machining $175
Valves
Severe Duty Inconel Exhaust Valves $550
Titanium Intake Valves $950
Titanium Exhaust Valves $950
Rocker Arms
Scorpion Severe Duty 1.7 Aluminum Rocker Arms w/Polylocks $315
T&D Shaft Rocker System Available In 1.70, 1.75 or 1.80 Ratio (Split Ratio Sets No Extra Charge).
Note: Pushrod Clearance Must Be Checked Before Final Assembly.
 $Call
Needle Bearing Tip Option for T&D Shaft Rockers $295
Intake Manifolds
Many Different Styles Available With Pricing Comparable To "Mail Order" From$250
Gaskets - Fasteners
Cometic MLS (Multi Layered Steel) Head Gaskets (.040/.045/.051 Thickness) Each$125
Cometic MLS (Multi Layered Steel) Head Gaskets (.060/.066 Thickness) Each$145
Intake Gaskets - Many Types & Thicknesses Available From$15
Rubberized Cork Valve Cover Gaskets From$15
Blue Silicone Rubber/Steel Core Valve Cover Gaskets From$49
Ultra Seal Exhaust Gaskets From$22
ARP Head Stud Kit w/Parallel Ground Washers From$239
Dart Inner Valley Stud Kit (Improved Head Gasket Sealing) $95
